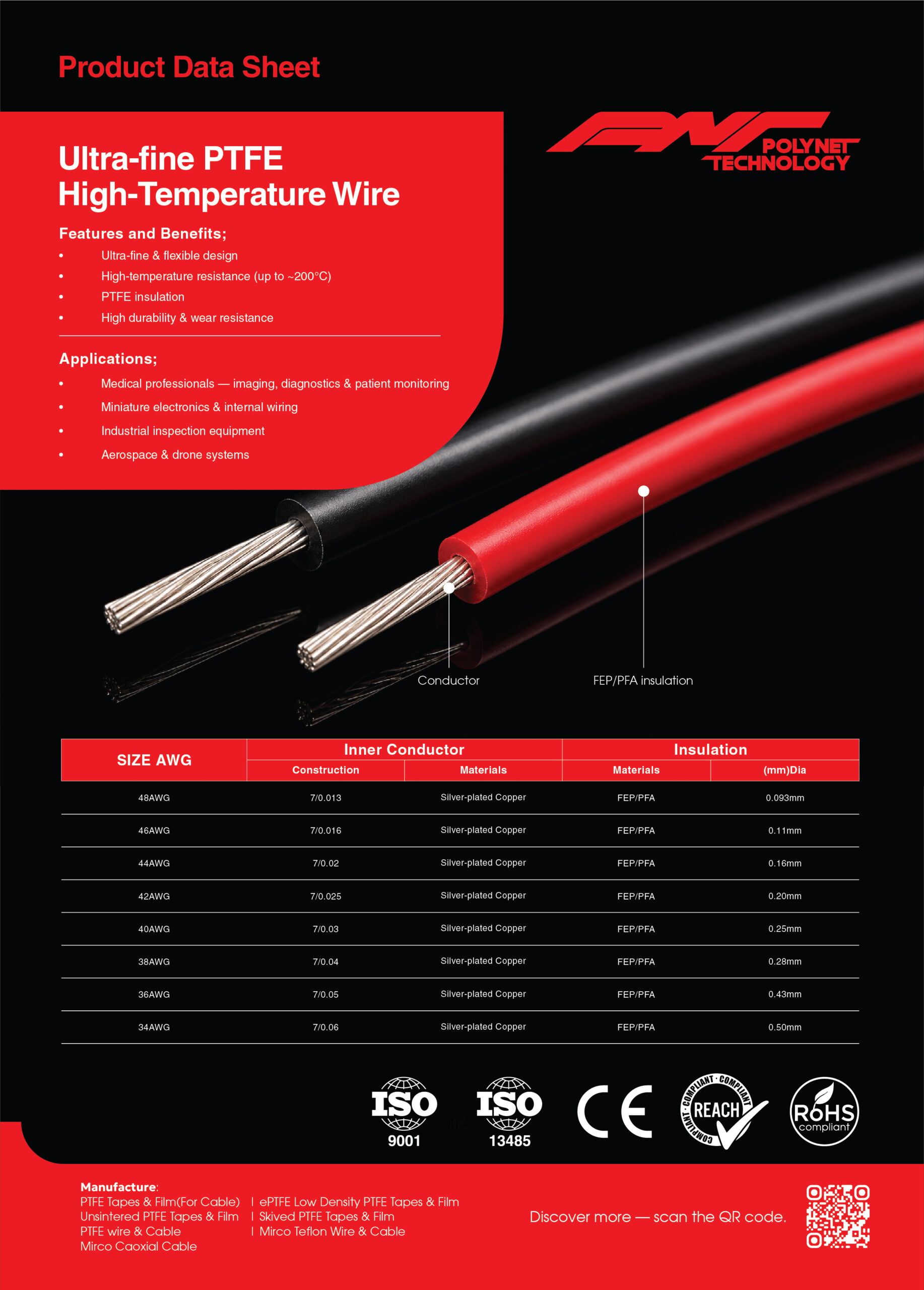

Features and Benefits
• Ultra-fine & flexible design
• High-temperature resistance (up to ~200°C)
• PTFE insulation
• High durability & wear resistance
Application
• Medical professionals — imaging, diagnostics & patient monitoring
• Miniature electronics & internal wiring
• Industrial inspection equipment
• Aerospace & drone systems
| SIZE AWG | Inner Conductor | Insulation | ||
|---|---|---|---|---|
| Construction | Materials | Materials | (mm)Dia | |
| 48AWG | 7/0.013 | Silver-plated Copper | FEP/PFA | 0.093 |
| 46AWG | 7/0.016 | Silver-plated Copper | FEP/PFA | 0.11 |
| 44AWG | 7/0.02 | Silver-plated Copper | FEP/PFA | 0.16 |
| 42AWG | 7/0.025 | Silver-plated Copper | FEP/PFA | 0.20 |
| 40AWG | 7/0.03 | Silver-plated Copper | FEP/PFA | 0.25 |
| 38AWG | 7/0.04 | Silver-plated Copper | FEP/PFA | 0.28 |
| 36AWG | 7/0.05 | Silver-plated Copper | FEP/PFA | 0.43 |
| 34AWG | 7/0.06 | Silver-plated Copper | FEP/PFA | 0.50 |
